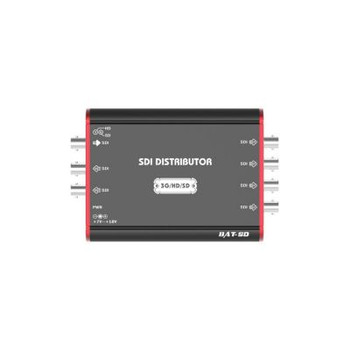

Lumantek Mini Converter BAT Series - SDI 6* Distributor
Input Electrical Specifications | |||||
Parameter | Min. | Max. | Units | Typ. | |
SDI Input Cable Lengths | SD-SDI (Belden 1694A) | 250 | ã | m | ã |
ã | HD-SDI (Belden 1694A) | 170 | ã | m | ã |
ã | 3G-SDI (Belden 1694A) | 155 | ã | m | ã |
RF Input | Connector (1 Port) | 75ohm, 1 x BNC type female | |||
Display | Input SDI Detect | SD(Green), HD/3G(Yellow) | |||
Output Electrical Specifications | |||||
Parameter | Min. | Max. | Units | Typ. | |
Rise/Fall time | SD-SDI : rise/fall time(20-80%) | ã | ã | ps | 600 |
ã | HD-SDI : rise/fall time(20-80%) | ã | ã | ps | 100 |
ã | 3G-SDI : rise/fall time(20-80%) | ã | ã | ps | 100 |
Peck to Peck Voltage Swing | SD/ HD/ 3G-SDI | 720 | 880 | mVpp | 800 |
Overshoot/Undershoot | SD/ HD/ 3G-SDI | -10 | +10 | % | ã |
RF Input | Connector (1 Port) | 75ohm, 1 x BNC type female | |||
Output Electrical Specifications | |||||
Parameter | Min. | Max. | Units | Typ. | |
DC Input power | 7 | 18 | V | ã | |
Lowest Power Consumption | ã | 2 | W | ã | |
Dimensions | 131 x 99 x 28.4 (except connector) mm | ||||
Weight | 370 g | ||||
